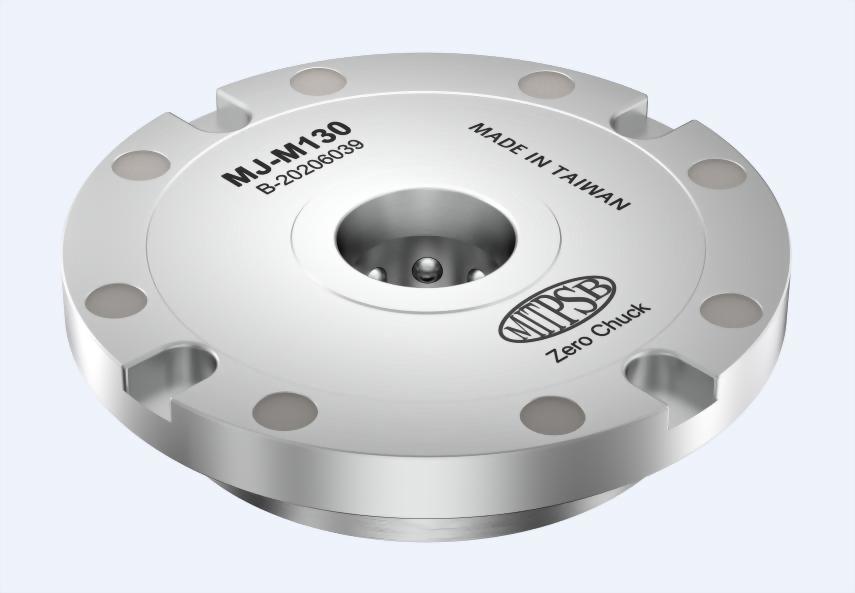

Clamping Unit Type130

Weight: 2.1kg

Minimum air supply pressure: 6bar

Repeat accuracy <0.005mm

Single chuck air pressure force of 600kgf
Model : MJ-M130

This type of clamping chuck is suitable for 2-way station or 1-way station.

The 2-way station is FJ-AB05 (pitch250).

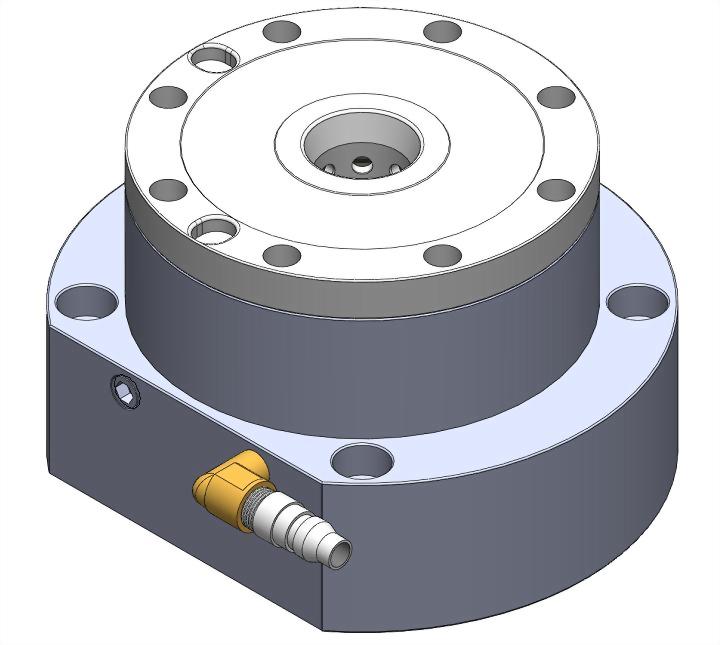

The 1-way station is FJ-AB02.

  • Zero-point clamping system suitable for CNC milling machine. This type can be general used in different platform.
  • Reduce the time of setting machine platform.
  • Reduce time of the changing machine line.
  • When using at least two upper unit plate, loading and unloading time can be reduced to 15 sec. Greatly increasing production capacity.
